Image to CAD
Deterministic drawing trace

Turn line drawings into
editable CAD.

Upload a technical drawing, scan or line sketch. Download DXF, DWG and SVG from the same validated geometry.

Convert one drawing free Sign in only when you download
DXF · AC1024DWG · AC1024SVG · VECTOR
FREE PREVIEW
Drop one line drawing hereJPG / PNG / WebP / BMP · 20MB
Sign in after the preview to download
01Upload
02Trace + OCR
03Validate
04Download
INTERACTIVE CAD

Drag across the conversion.

Compare a source drawing with its verified CAD output, then inspect individual DXF entities.

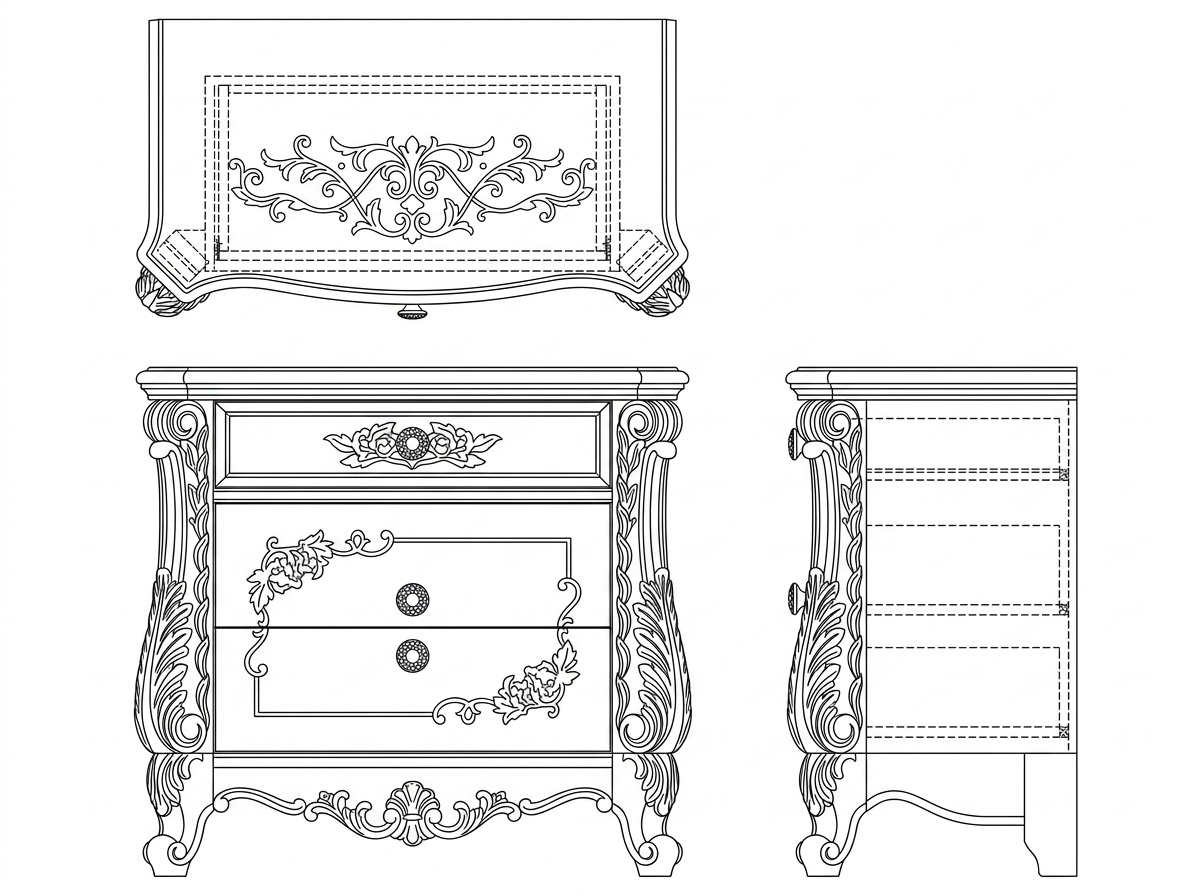

Original cabinet line drawing
CAD result reopened from DWG
CAD RESULTSOURCE
SITE DEMO · VERIFIED OUTPUTDWG reopened → SVG preview
DXF / AC1024HOVER AN ENTITY
ENTITYE-03 · ARC
START188, 122
END452, 122
ONE GEOMETRY CONTRACT

Not a format wrapper.

Native geometryLines, arcs, circles and curves remain editable.
Drawing OCRLabels become CAD text instead of glyph outlines.
Three outputsDXF, DWG and SVG are published from the same job.
PRO SUBSCRIPTION

One plan. Full output.

  • DXF, DWG and SVG
  • Editable OCR text
  • One active job, up to 50 per day
  • Results available for 7 days
PRO / MONTHLY$14.99/month

Annual $149. International checkout opens after Paddle approval.

Generate a free preview
